Welded Wire Fence: Comprehensive Guide for Security and Aesthetic Solutions

Types of Welded Wire Fences

1. Double Wire Fence (Bilateral Wire Fence)

• Structure: Features two adjacent edge wires welded to the mesh, connected to posts via bolts.

• Advantages: Simple structure, cost-effective, easy installation, and compatibility with masonry walls for enhanced stability.

• Specifications:

  • Post Diameter: 48–60mm (round or square tubes).

  • Mesh Sizes: 60×120mm, 75×150mm.

  • Panel Dimensions: 2–3m (width) × 2–2.2m (height).

    ---



2. Double Loop Fence

• Structure: Cold-drawn low-carbon steel wires welded into loops for added strength. Posts are fixed with concrete foundations and stainless steel clamps.

• Advantages: High corrosion resistance (post-dip galvanized and plastic-coated).

• Specifications:

  • Wire Diameter: 4.5–5mm (after coating).

  • Mesh Size: 50×200mm.

  • Panel Dimensions: 2.4×3m.

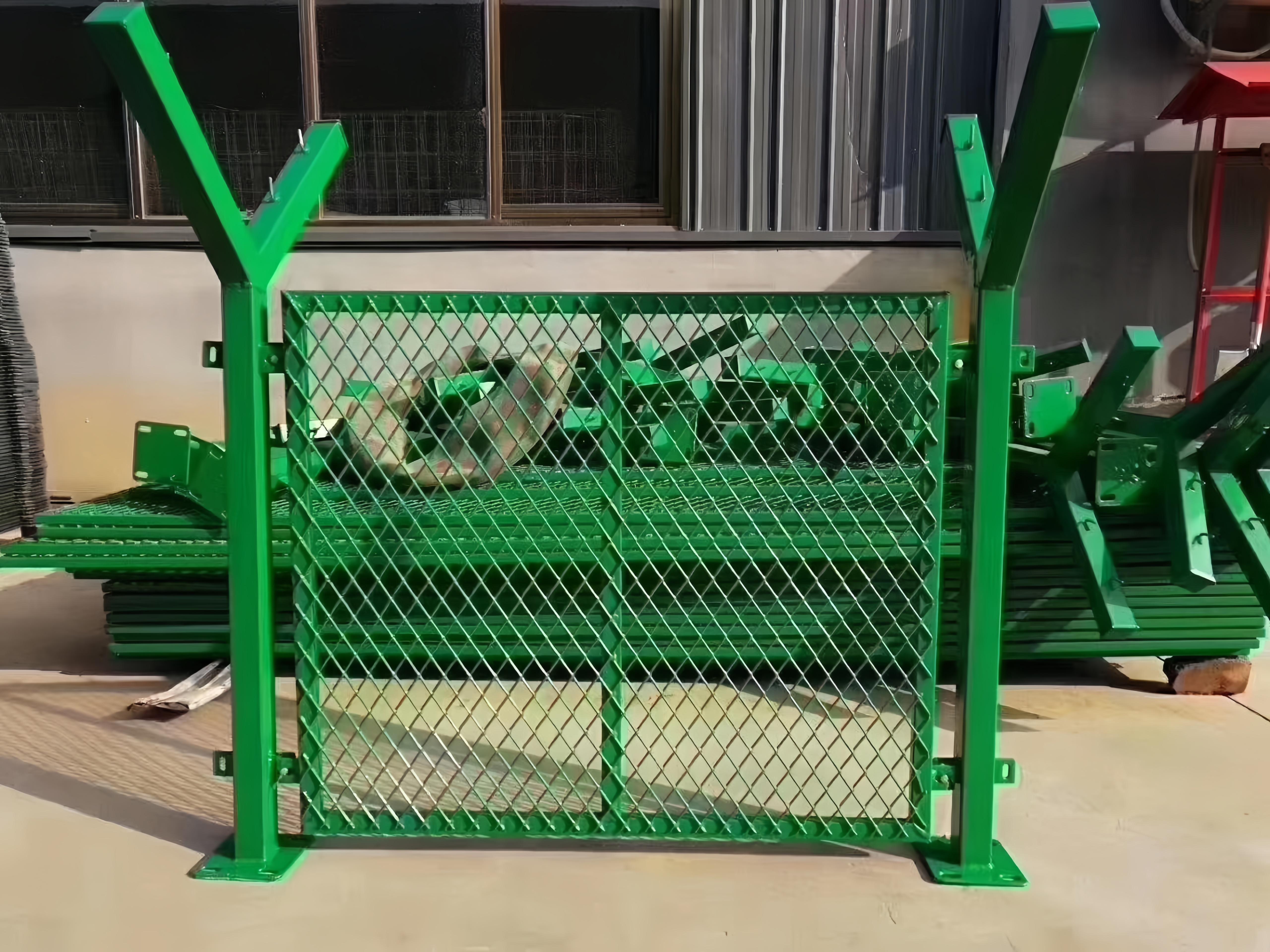

3. Frame-Type Fence

• Structure: Mesh welded onto a rigid frame, suitable for both permanent and temporary installations.

• Variants: Single-frame or double-frame designs.

• Specifications:

  • Wire Diameter: 3–6mm (pre-coating), 4–7mm (post-coating).

  • Mesh Sizes: 75×150mm, 80×160mm.

  • Panel Dimensions: 1.8×3m.

4. Triangular Bent Fence

• Structure: Low-carbon steel wire welded into triangular bends for aesthetics. Features底盘立柱 (base-plate posts) for quick installation.

• Specifications:

  • Wire Diameter: 5.0mm (after coating).

  • Mesh Size: 50×200mm.

  • Post Size: 60mm×2.5mm.

5. Wave Fence

• Structure: Pre-curved wires welded into wave patterns, coated with PVC/PE/PP for weather resistance.

• Specifications:

  • Wire Diameter: 2.5mm.

  • Mesh Sizes: 50×50mm, 50×100mm.

  • Panel Length: 30m (1.2–2m height).

International Fence Variants

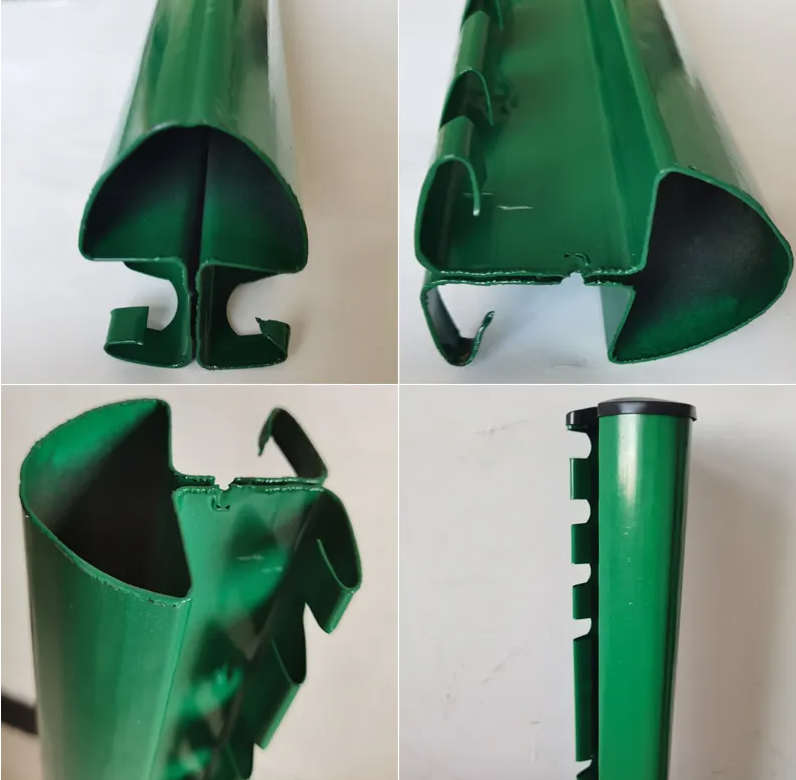

• Curvy Welded Fence: Features防盗护栏柱 (anti-theft posts) for bolt-free installation.

• 358 Fence: High-security mesh (76.2×12.7×4mm) resistant to cutting and climbing.

• Temporary Fence: Modular, reusable panels for construction sites or events. Common types include steel-wire welded and steel-tube designs.

Additional Barrier Solutions

1. Chain Link Fence: Flexible and elastic, ideal for sports fields.

2. Expanded Metal Mesh Fence: Anti-glare design for highways.

3. Barbed Wire & Razor Wire Fence: Enhanced security with sharp edges.

4. Palisade Fence: Decorative European-style options (D/W-shaped profiles).

Key Parameters for Welded Fences

• Material: Stainless steel, low-carbon steel, galvanized/plastic-coated wire.

• Mesh Sizes: 50×50mm to 80×160mm.

• Coating: Hot-dip galvanizing, PVC/PE/PP powder coating.

• Colors: Green, black, white, red, etc.

• Post Specifications: 2–2.5m height, 2.5–3m spacing, 250–300mm embedment depth.

Corner Bead Mesh

Used for protecting wall corners, available in PVC and metal variants:

1. PVC Corner Bead

• Applications: Exterior insulation or interior decoration.

• Specifications:

  • Width: 20–25mm.

  • Length: 2–2.5m.

  • Fiberglass Cloth Width: 100mm.

2. Metal Corner Bead

• Materials: Galvanized steel, expanded/perforated metal.

• Specifications:

  • Length: 2–3m.

  • Thickness: 0.4–3mm.

    ---
