Premium Stainless Steel Wire Mesh Solutions | Customized Filtration & Industrial Applications — Matel Mesh Filtration

Anping Duozhuang Metal Wire Mesh Factory specializes in designing and manufacturing high-performance stainless steel wire mesh and precision filtration solutions. With advanced production facilities, a team of professional engineers and strict quality control, we provide tailor-made products for industries such as petroleum, aerospace, pharmaceutical, food processing and automotive. Our commitment to innovation and customer-centric service makes us a trusted partner in more than 20 countries
　　

Core Products & Technical Expertise

1.Stainless Steel Wire Mesh

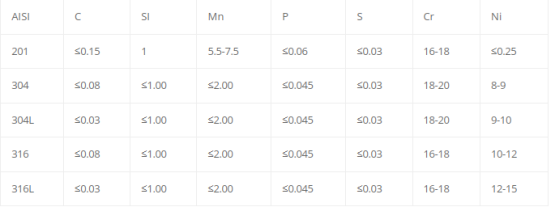

• Materials: 201, 202, 304, 316, 316L, 321 (compliant with international standards).

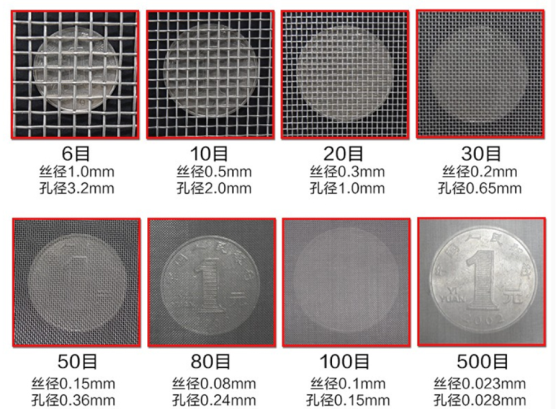

• Specifications: 2–600 mesh, customizable shapes (round, rectangular, oval, etc.) and edge treatments (hemming, injection molding).

• Applications: Chemical filtration, machinery protection, architectural decoration, and aerospace components

2.Single-Layer Filter Meshes

• Materials: Stainless steel, iron, Monel.

• Weaving Types: Plain weave, twill weave, Dutch weave.

• Features: Precision-cut for seamless integration into machinery. Ideal for diesel engines, extruders, and hydraulic systems

3.Multi-Layer Sintered Mesh

• Structure: 2–5 layers of woven mesh fused via spot welding or sintering.

• Advantages: Enhanced durability, high-pressure resistance, and ultra-fine filtration (1–500 μm).

• Applications: Oil refining, pharmaceutical distillation, automotive air filters, and food-grade sieving

4.Contrast Dutch Woven Mesh (Extruder Screen)

• Design: Warp wires thicker than weft wires for superior strength and filtration accuracy.

• Benefits: Extended service life, ideal for high-impact environments like plastic extrusion and chemical processing

Single layer filter:

Plain woven metal mesh, twill woven mesh, and dutch mesh made of stainless steel, iron, Monel, etc.; cut into rectangles, squares, circles, ovals, rings, rectangles, hats, and waists by cutting strips , The special-shaped shape is better installed in the machine to complete the filtering and screening functions.

In order to make the machine run better, hemming and injection molding can be performed.

Mainly used in diesel engine, filter press, chemical fiber and plastic extruder, textile raw liquid filtration, mining, water conservancy, food and other industries.

Multilayer mesh (sintered mesh)

Flat woven metal mesh, twill woven mesh, and mat-shaped mesh made of stainless steel, iron, Monel, etc.; cut into circles, rectangles, squares, circles, ovals, rings, rectangles, and hats by cutting strips , waist shape, and special shape; because the single-piece metal mesh cannot meet the filtering accuracy and impact force;

Therefore, double-layer, three-layer, four-layer, five-layer, and multi-layer metal meshes are used to combine, after spot welding, the metal edging is fired, and the multi-layer meshes are combined together.

Mainly used for distillation, absorption, evaporation, filtration and other processes in rubber, plastics industry, grain and oil screening, petroleum, oil refining, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding, automobile tractor and other industries

Eliminates mist and liquid entrained in vapor or gas, and as an air filter in automobiles.

Extruder Screen

The dutch woven mesh is because its warp and weft wire diameters are different and the number of meshes is different. The dutch woven mesh are fine-filtered dense nets, but generally the warp wire diameter is larger than the weft wire diameter. The contrast is because the weft threads are much thicker than the warp threads.

         The main feature is that there is a large contrast between the warp and weft wire diameters and densities, so the thickness, filtration accuracy and service life of the mesh are longer than those of the square hole mesh, and its filtration accuracy is also high.
